FULLY AUTOMATIC CARTONING MACHINE

SPECIFICATIONS

An automatic Cartoning Machine depicts carton from the magazine as well as opens carton, includes product as well as closes carton through tucking in flaps.

The semi automatic cartoning machine is suited for handling such items like blister strips, tubes, bottles, ampoules, droppers, vials, film rolls, inhalers, bearings, soaps as well as a lot of other products to fall within extensive range of machine either independently or with combination.

The semi automatic cartoning machine comprises Carton pick - up, Product checking, Carton erection, Code embossing through knife blades, Product insert, Leaflet pick - up, Carton closure, Carton closure, and Discharge. Continuous Cartoning Machine is for the output for 120 packs every minute.

The applications that machine may successfully be utilized for Cosmetics, Cartoning Tubes, Bottles, Ampoules, Soaps, Bearings, Blisters, Vials, or other severe products which goes to the unit carton. The multi packs for over one product within the unit carton may also be felt in the Cartoning Machine.

The in-feed customized built semi automatic cartoning machine in the feed systems may be made accessible for suiting your specific requirements. The in feed system helps in linking Cartoner for your production/packaging line permitting you to computerize transfer of product from the Tube Filling Machines for Cartoner.

The In-feed Carton Oscillating suction pads remove flat folded cartons through magazine as well as open them. Tension in carton is unrestricted by breaking back fold before tamper drives it between chain transporting fingers. The mechanical side-flap openers unlock side flaps bodily during positioning of carton in carton chain.

Loading continuous motion barrel loader pushers sprint alongside product chain as well as push product safely in open carton. In case carton is mislaid, product may not be burdened. The overloaded safety feature may stop machine in case the fault happens during the loading.

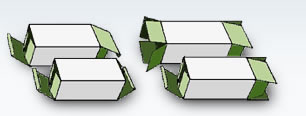

Closure: Two kinds of final systems are given, the tuck within system, as well as glue purpose systems.

Discharge: belts take completed pack carefully out of machine.

Leaflet Insertion: The automatic addition of the pre-folded flyers is also probable with the leaflet pre-insertion devices.

Semi Automatic Cartoning Machine

SHORT INTRODUCTION

Model S-50 Automatic Cartooning Machine (box folding-Filling- Packing) is a particular design for automatic packing multi size box for small quantities.

With the lower cost as well as only need small areas. This is appropriate for different size boxes. A machine is the upright kind with the multiple functions as well as needs shorter time for changing the mould. Machine is being made of the aluminum alloy through anode treatment. It has rust proof longer service life as well as easily cleanable. The product automatically drops into the box through conveyor and star wheel.

SPECIFICATIONS

Model	S - 50
Box size	Max : 80mm (L) x 80mm (W) x 200mm (H) Min : 15mm (L) x 15mm (W) x 60mm (H)
Leaflet Size (Incase of) – 4 Manually folded	Max : 200mm (L) x 60mm (W) Min : 100mm (L) x 8mm (W)
Output Speed	20 - 50 boxes/min max.
Working Height	700 ± 50mm
Power Consumption	0.5 HP, 0.37KW
Power Supply	Single phase, 230V, 50Hz.
Air supply	9 kg/cm²
Air Consumption	10 CFM
Net Weight	350Kg
Dimensions	750mm (L) x 850mm (W) x 1200mm (H)
Carton Paper Thickness	250 gsm – 300 gsm
Leaflet Paper Thickness	50 gsm – 60 gsm

PROPER USAGE

Round bottled medicine, cosmetic, food-stuff, etc packing into the square box

APPLICATION

	Beverages & Liquor
	Chemical Industry & Pharmaceutical
	Cosmetic Industry
	Dairy & Food Industry
